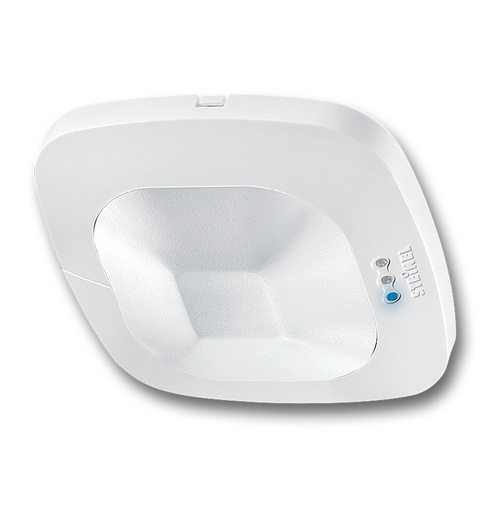

Ceiling Mount Microwave Motion Sensor

Ceiling Mount Microwave Motion Sensor
Ceiling Mount Microwave Motion Sensor
Product Code : 360° Detection Angle
Brand Name : Steinel
Product Description

Ceiling Mount Microwave Motion Sensor

Pammvi is a renowned dealer, agent, solution provider and supplier for the Steinel Manufactured Ceiling Mount Microwave Motion Sensor in India. Our clients include Hotels, Banks, lighting planners, electrical consultants and architects.

Lights turn on & off automatically up on detecting human motion and ambient day lighting levels there by saving energy by the end user.

This Ceiling Mount Microwave Motion Sensor is ideally suited for WCs with toilet cubicles, changing rooms, stairwells, multi-tier car parks and kitchens. This Ceiling Mount Microwave Motion Sensor mounted act height of 3.5 Meters and has an adjustable reach

of 1-8 Meters regardless of temperature variation. The sensor technology detect movement though glass & woods.

It has an automatic time adjustment feature  call the IQ mode where the sensor monitors the human movement adjust the time automatically.

The detection zone can be extended using the master/ slave principle.

 Option

1 - Guard cage

2 - KNX, Dali and 1-10V dimming

3- Com2 isolated channel out put

4 - Hand held remote control

5 - Flush mounting adapter

Live life conveniently and save energy too.

More quality of life, more safety and security and more energy saved with intelligent sensor technology from STEINEL.

Light 'ON' / 'OFF' - automatically.

Highly innovative sensors respond to movements and light levels, automatically and instantaneously switching the

light 'ON' and 'OFF' again after a pre-selected time.

Technical Specifications Ceiling Mount Microwave Motion Sensor HF 360 COM1

European Article Number (EAN)4007841002800
TypePresence detector
Dimensions(h x w x d)120 x 120 x 56 mm
Sensor typeHigh Frequency
Applicationinside buildings
InstallationCeiling
Recommended installation height2.5-3.5 m
Detection angle360° with 140° angle of aperture, also through glass, wood and stud walls
Adjustment1 or 2 detection directions can be adjusted to suit the room situation.
Reach8 m max. all round, infinitely variable
Sensor systemHigh-frequency 5.8 GHz (transmission power < 1mW)
Parallel-connected configurationsMaster/master
Master/slave
User-friendly setting capabilityTeach-in (with optional remote control RC3)
Light-level setting10 “ 1000 lux, ?/daylight
IP ratingIP20
Protection classII
IP rating with AP Box (surface-mounting box)IP54
Temperature range-25-+55 °C
IQ modeYes
HousingUV-resistant, paintable
ModelCOM1
