Ceiling Mount PIR Sensor Switch

Ceiling Mount PIR Sensor Switch
Ceiling Mount PIR Sensor Switch
Product Code : 360° Ceiling Mount
Brand Name : Steinel
Product Description

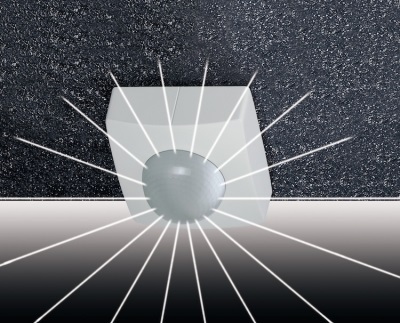

Ceiling Mount PIR Sensor Switch

Pammvi is the supplier, wholesaler and national distributor for the Steinel Manufactured Ceiling Mount PIR Sensor Switch in India. The Passive Infrared Sensor is highly responsive and instantaneously turns on and off the connecting lighting loads after the preselected time delay.

It has three pyro sensors housed behind a multi-segment lens with 1416 switching zones for accurate human movement detection at a distance of 20 meters. The Lens itself has a 360° angle of coverage with a 180° angle of aperture ensuring coverage on every minute area over the 20 meter tangential detection range. In the teach in mode, it automatically memorises the ambient brightness for daylight harnessing and an On Pulse of 2 seconds during installation and commissioning. The PIR Sensor module can identify parallel sensors connected with it on the wiring loop

There is an option flush mount model suitable for suspended ceilings and an Isolated Opto Coupled Potential Free Contact for down stream integration

Ideal for both indoors and outdoors up to a mounting height of 4 m particularly for watching over high spaces and large areas (e.g. multi-storey and underground car parks)

Technical specifications Infrared motion detector IS 3360
European Article Number (EAN)4007841606411
TypeMotion detector
Dimensions(h x w x d)95 x 95 x 65 mm
Voltage230 - 240 V / 50 Hz (2.5 mm² max.)
Sensor typePassive infrared
Applicationindoors and outdoors
InstallationCeiling
Recommended installation height2.50-4.00 m
max. output (resistive load, incandescent lamp)2000 W
max. output (uncorrected, inductive, cos   = 0.5, e.g. fluorescent lamps)1000 VA
max. output (series-corrected)900 W
max. output (parallel corrected, with C  45.6 µF)500 W
max. output (electronic ballasts, capacitive, e.g. low-energy lamps)8 ea. max., C ? 176 µF
Detection angle360° with 180° angle of aperture
Capability of masking out individual segmentsYes
Reach20 m max. tangentially, temperature-stabilised. + precision adjustment using shrouds
Sensor system11 detection levels
1416 switching zones
Response brightness2-2000 lx
Response brightness teach functionYes
Time setting5 sec. - 15 min., pulse mode (approx. 2 sec.)
Manual overrideselectable, 4h
IP ratingIP54
Protection classII
Temperature range-20-+50 °C
