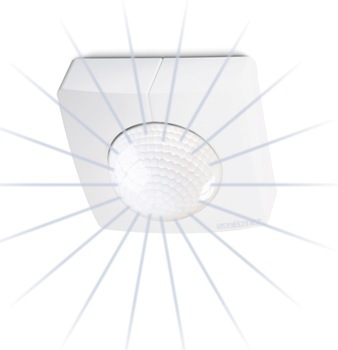

Corridor Motion Sensor

Corridor Motion Sensor
Corridor Motion Sensor
Product Code : IS 345
Brand Name : Steinel
Product Description

Corridor Motion Sensor

Pammvi is a leading dealer, agent, supplier and wholesaler for German Quality Steinel manufactured Corridor Motion Sensor to Lighting Specifiers, Light Planners, Energy Auditors and Electrical Consultants in India.

It operates on the Passive Infrared principle of detecting Human Movements. Its an Indoor Ceiling mount Motion Sensor with a 360°Angle of coverage and 180° Aperture Angle it can cover a reach of 20 meters in any corridor, passage, hallway or aisle. The area covered by its Two Pyro Sensors is 20 x 4 meters & 12x4 meters in the tangential and radial walking direction respectively at a mounting height of 3 meters.

This Corridor Motion Sensor turns lights on / off after detecting human movement. Time Delays  and Ambient daylight levels all settable with a potentiometer. A teach in mode helps in easy commissioning at site and the Motion Sensor can identify multiple sensors daisy chained in parallel to it .

Technical specifications Corridor Motion Sensor IS 345
European Article Number (EAN)4007841606510
TypeMotion detector
Dimensions(h x w x d)95 x 95 x 65 mm
Voltage230 - 240 V / 50 Hz (2.5 mm² max.)
Sensor typePassive infrared
Applicationindoors and outdoors
InstallationCeiling
Corridor
Recommended installation height2.50-4.00 m
max. output (resistive load, incandescent lamp)2000 W
max. output (uncorrected, inductive, cos  = 0.5, e.g. fluorescent lamps)1000 VA
max. output (series-corrected)900 W
max. output (parallel corrected, with C 45.6 µF)500 W
max. output (electronic ballasts, capacitive, e.g. low-energy lamps)8 ea. max., C ? 176 µF
Detection angle180° with 45° angle of aperture
Capability of masking out individual segmentsYes
Reach20 x 4 m max. (tangential), 12 x 4 m max. (radial); precision adjustment by re-positioning the lens and using shrouds
Sensor system5 detection levels
280 switching zones
Response brightness2-2000 lx
Response brightness teach functionYes
Time setting5 sec. - 15 min., pulse mode (approx. 2 sec.)
Manual overrideselectable, 4h
IP ratingIP54
Protection classII
Temperature range-20-+50 °C
