High Bay Occupancy Sensor

High Bay Occupancy Sensor
High Bay Occupancy Sensor
Product Code : 360°Warehouse Sensor
Brand Name : Steinel
Product Description

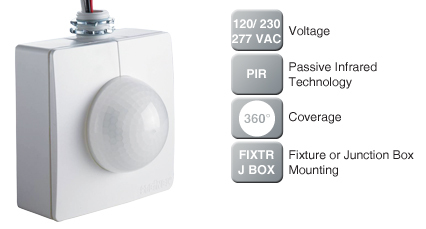

HIGH BAY OCCUPANCY SENSOR

Pammvi is a renowned solution provider, dealer, agent, supplier and wholesaler for German made Steinel HIGH BAY OCCUPANCY SENSOR for our customers in India

This High Bay Occupancy Sensor can be mounted at a maximum height of 45 feet or 15 meters and can cover a distance of 60 feet in a 360 degree range of occupancy detection making it ideal for lofty heights: warehouses, high-bay warehouses, machine shops, terminal buildings and waiting areas. Detection over a radius of 18 sqm, capability of watching over large areas, direct control of lights. The High Bay terminology implies ceiling heights in excess of 25 feet

Turns the Lights ON/OFF automatically.  Very innovative responsive occupancy sensors respond to movements and light levels, automatically and instantly switching the light ON and OFF again after a preselected time.

This Occupancy Sensor operates on the principle of Passive Infrared Detection and possess a multi segment lens having 1416 switching zones making it very sensitive to human movements below. This Occupancy Sensor is adapted for lighting fixture mount as a direct surface mount on high ceilings may become untenable and inappropriate. Steinel offers a 3 year functional warranty against manufacturing defects only.

SALIENT FEATURES

  • 360° coverage with up to 60 foot reach
  • Coverage area may be adjusted with plastic lens covers that snap to the front of the sensor
  • 3 pyroelectric detectors with 1416 switching zones provides better detection for high bay applications
  • Precision molded lens
  • Automatically adjusts to temperature changes keeping sensitivity and coverage consistent
  • Light level feature allows lighting to remain off during daylight regardless of occupancy
  • Built-in surge protection with auto-reset
Technical specifications HBS 300 HIGHBAY OCCUPANCY SENSOR
European Article Number (EAN)4007841005610
Dimensions(h x w x d):99 x 115 x 66 mm
Voltage220 - 240 V, 50/ 60 Hz
Sensor typePassive infrared
Applicationinside buildings
InstallationCeiling Corridor
Recommended installation height4-14 m
max. output (resistive load, incandescent lamp)1200 W
max. output (uncorrected, inductive, cos  = 0.5, e.g. fluorescent lamps)600 VA
max. output (electronic ballasts, capacitive, e.g. low-energy lamps)Electronic ballasts, capacitive, e.g. low-energy bulbs, max.of 8 each, C  176 F)
Detection angle360°
Capability of masking out individual segmentsYes
Reach18 m max., mounted at a height of 14 m
Detection levels11
Switching zones1416
Response brightness2-2000 lx
Time setting15 sec. - 30 min.
IP ratingIP20
Protection classII
Temperature range-20-+50 °C
MaterialUV-resistant plastic
