Indoor Sensor LED Light

Indoor Sensor LED Light
Indoor Sensor LED Light
Product Code : Flush Mount 22W LED
Brand Name : Steinel
Product Description

Indoor Sensor LED Light

Pammvi is a leading dealer,agent,supplier and wholesaler for German Quality Steinel Manufactured Indoor Sensor LED Light to lighting planners, hotels, banks, electrical consultants and specifiers.

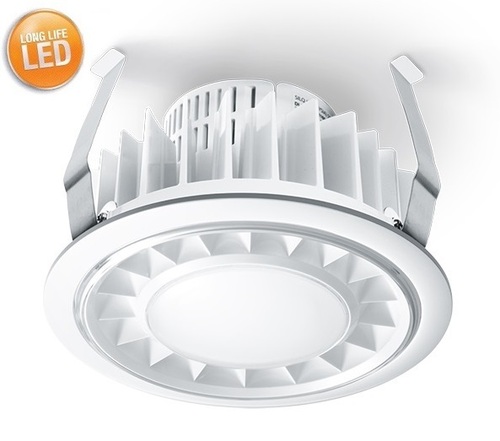

The Steinel Sensor Switched Downlight LED RS PRO DL LED 22W is flush mounted on suspended ceilings and is ideally suited for large installations, e.g. WC facilities at airports, in schools, office buildings or administration centres. Its available in two variants namely the 21W and 15W along with a Slave Version for its master - slave eco system.

Light ON / OFF  automatically

It has a very responsive 5.8 GHz High Frequency / Microwave Motion Sensor which react to human movements and ambient light levels, automatically instantly switching the light ON and OFF again after a preselected time.

This  22-W LED down lighter RS PRO DL LED emits a cool-white colour temperature and the LED sensor system can be installed at a ceiling height of 2.5 to 3 meters.  The 22-W LED delivers a brightness of 1400 lumens and colour temperature of 4000 K. The LED light needs no start-up period but instantly reaches full output like any resistive light fixture.

The LEDs have a life expectancy of around 50,000 h as a result of which there is no maintenance activity. This is made possible by the intelligent LED cooling system which  monitors and controls the temperature of the LEDs all the time. This prevents them from overheating and gives them their long life expectancy.

Invisibly mounted the HF-sensor is inconspicuously integrated in the enclosure and responds to even the tiniest of movements over a distance of up to 8 m in a radius of 360° regardless of the prevailing ambient temperature nor does it have any blind spots which limit the sensitivity.

The reach setting can also adjusted from 2 - 8 m while the time delay can be infinitely adjusted from 1 - 60 min along with the twilight threshold, from 1-2000 lux for the purposes of daylight harnessing. Steinel offers a 3 year functional warranty on all its products and solutions.

Technical Specifications Indoor Sensor LED Light 22 W
European Article Number (EAN)4007841007751
Dimensions(h x w x d)168 mm dia. x 94.4 mm
Voltage230 - 240 V, 50 Hz (can be operated on direct current in emergency lighting mode)
Sensor typeHigh Frequency
Transmitter powerapprox. 1 mW
HF-system5.8 GHz (responds to the tiniest movement regardless of temperature)
Output22 watts
Brightness1400 lm
Efficiency63.6 lm/W
Light colour4000
LED life expectancy50000 h
Detection angle360° with 160° angle of aperture
Detectionalso through glass, wood and stud walls
Reach2 - 8 m dia. max., infinitely variable
Max. area covered50 m²
Response brightness2-2000 lx
Time setting1 min. - 1 hr.
IP ratingIP20
Protection classII
Temperature range-10-+50
Basic light level10 % (optional)
Model22 W CW
With lampSTEINEL LED system
