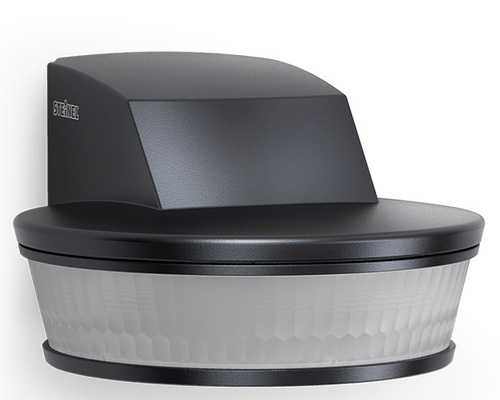

KNX Motion Sensor

KNX Motion Sensor
KNX Motion Sensor
Product Code : 180° angle aperture
Brand Name : Steinel
Product Description

KNX Motion Sensor

Pammvi is a leading dealer, agent, supplier and wholesaler for German made Steinel brand KNX Motion Sensor to Lighting engineers, KNX system solution providers, system integrators and building automation Companies in India.

Steinel is a certified KNX member and manufactures the KNX Motion Sensor and other KNX Compatible solutions which are being actively patronized by System Integrators and KNX Solution Providers for lighting control and building automation. The Steinel KNX Motion Sensor products and solutions are certified by the KNX association in Germany.

This new version of the sensIQ S is available as a wall mount Motion Sensor in a KNX version. It is ideally suited for both indoors and outdoor applications such as  building entrances, multi tier car parking areas and  Loading bays. They operate best when mounted at a height of up to 2.5 m.

It has a quadruple sensor system for optimum surveillance over 3 x 100° coverage angle, 20 m reach (tangential), reach setting to the accuracy of a metre in 3 independent directions. Optional Accessories for corner mounting and a choice of three colours are also available

Technical Specifications KNX Motion Sensor
European Article Number (EAN)4007841004040
TypeMotion detector
Dimensions(h x w x d)114 x 74 x 128 mm
VoltageKNX bus voltage
Sensor typePassive infrared
Applicationindoors and outdoors
Recommended installation height2.00-2.50 m
Detection angle300° with 180° angle of aperture
Capability of masking out individual segmentsYes
Sneak-by guard/coverage directly below the sensorYes
ReachAdjustable in 3 directions by control dial, (2  20 m max., tangentially, temperature-stabilised)
Sensor system4 sensors, 6 levels for long-distance detection and 5 for sneak-by guard, 1360 switching zones
Time setting1 min.  15 min.
User-friendly functionSoft light start, LED active / inactive
Further outputsLight: in relation to movement and light level
Presence: governed by movement
Close-up range: Evaluation of sneak-by guard pyros, governed by movement
Twilight output: governed by light level (0 - 300 lx)
Light level outputin lux
Basic light level10 - 50 %
IP ratingIP54
Protection classII
Temperature range-20-+50 °C
VersionStainless steel
