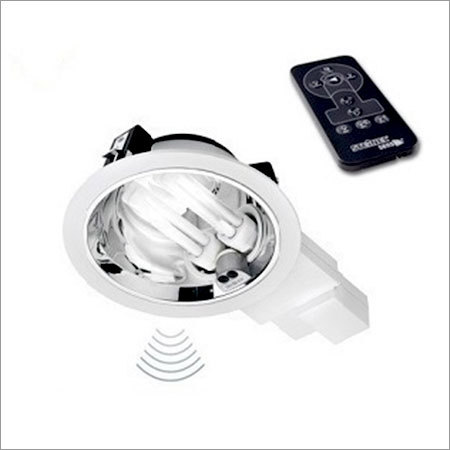

Motion Sensor Lamp

Motion Sensor Lamp
Motion Sensor Lamp
Product Code : RS PRO DL 100
Brand Name : Steinel
Product Description

Motion Sensor Lamp

Pammvi is a channel partner, wholesaler, importer and the sole national distributor for Steinel Brand - German Quality Ceiling Flush Mounted Motion Sensor Lamp. This particular Sensor Downlight from Steinel has a flush fitted form factor on a Suspended Ceiling. The RS Pro DL 100 is available in two versions one with a High Frequency Motion Sensor integrated and the other without the Motion Sensor. This particular Motion Sensor Lamp is extensively used for Large Format Indoor applications like Corridors, Toilets, WCs airports, railways, shipping ports, office buildings, schools, universities and public administration infrastructure

All Movement Detectors whether Passive Infrared, Microwave, Ultrasonic or Doppler, operate on the principal of human presence detection in the detection range of the motion sensor. To cover large areas like corridors, aisle ways and passages in Hotels or Offices, Steinel provides for an optional Master and Slave feature where the Master Motion Sensor Lamp is placed strategically at all entry and exit points and hardwired to other Lamps which act as Slaves or Lighting fixtures which get actuated based on the settings of the Master Light Fixture only.

There is an inconspicuous High Frequency / Doppler Motion Sensor integrated in the RS Pro DL 100 Motion Sensor Lamp which has 2x18W Tube Lights with programmable pre - heat warm start ballasts for enhancing the life these Fluorescent Tube Lights.

This Motion Sensor Lamp has a infrared remote control for incorporating the basic operational settings like the time delay, and distance adjustment to arrive at the most precise distance setting. Sometimes with the high frequency sensor, a distance beyond the prescribed area of detection can result in the Motion Sensor picking up unsolicited motion as well. There is a lux setting for harnessing daylight availability making it a genuine energy saving lighting fixture.


Fixture TypeMotion Sensor Lamp
Output2 x 18W / TC-DEL (2 Electronic Ballasts)
Additional Switching CapacityMax 4 Additional Lights
Response Brightness2-2000 LUX (Via Remote Control)
Motion Sensor TypeMicrowave - Responsive to small motion
Reach2 - 8 mtrs, Adjustable (Via Remote Control)
Detection Angle & Coverage3600, Ceiling Mount, 50 m2area covered
Time Setting1min - 60min (Via Remote Control)
