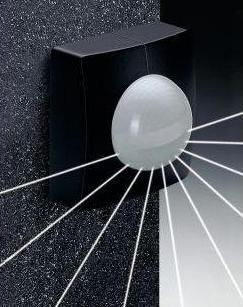

Motion Sensor Outdoor

Motion Sensor Outdoor
Motion Sensor Outdoor
Product Code : IS 3180
Brand Name : Steinel
Product Description

Motion Sensor Outdoor

Pammvi is a reputed dealer, agent, supplier and wholesaler for German made Steinel Wall Mount PIR Motion Sensor Outdoor

It can also be mounted indoors and outdoors at height of 2 m and is commonly used for surveillance and detection of large areas

Passive Infrared Sensors or Pyro Sensors as they are commonly called are always used for external or outdoor Energy Saving applications where one finds a surfeit of unsolicited movement patterns and detection of real time human movement signature needs to be precise. The algorithm used needs to be robust and reliable so as to detect human movements precisely, recurrently and consistently.

These Motion Sensors are mounted on a Wall and have a detection angle of 180° with 90° angle of aperture. It has a fresnel lens with a tangential detection range of about 20 meters with a  thermal compensation feature making the distance consistent during all thermal patterns found outdoors.

It has a manual by-pass of 4 hours along with a off time delay of  5 seconds to 15 minutes with a lux setting of 2-2000 lux wherein the Motion Sensor understands the availability of natural daylight and therefore turns on or off the connected load in accordance with this preset threshold. It has a high IP Protection in keeping with its proposed location outdoors. The teach in mode allows the Motion Sensor to be tested in field conditions. This is useful feature for the installer

Technical specifications Motion Sensor Outdoor IS 3180 Black

European Article Number (EAN)

4007841606114

Type

Motion detector

Dimensions(h x w x d)

95 x 95 x 65 mm

Voltage

230 - 240 V / 50 Hz

Sensor type

Passive infrared

Application

indoors and outdoors

Installation

Wall
Corner

Recommended installation height

2.00 m

max. output (resistive load, incandescent lamp)

2000 W

max. output (uncorrected, inductive, cos φ = 0.5, e.g. fluorescent lamps)

1000 VA

max. output (series-corrected)

900 W

max. output (parallel corrected, with C (45.6 µF)

500 W

max. output (electronic ballasts, capacitive, e.g. low-energy lamps)

8 ea. max., C 176 F

Detection angle

180° with 90° angle of aperture

Capability of masking out individual segments

Yes

Reach

Basic setting 1: 8 - 20 m tangentially; temperature-stabilised. Basic setting 2: 4 - 8 m max.; temperature-stabilised. + precision adjustment by re-positioning the lens and using shrouds

Sensor system

7 detection levels
448 switching zones

Response brightness

2-2000 lx

Response brightness teach function

Yes

Time setting

5 sec. -15 min., pulse mode (approx. 2 sec.)

Manual override

selectable, 4h

IP rating

IP54

Protection class

II

Temperature range

-20-+50 °C

Version

Black
