Product Code : QS-88
Brand Name : PAMMVI EXPORTS PRIVATE LIMITED

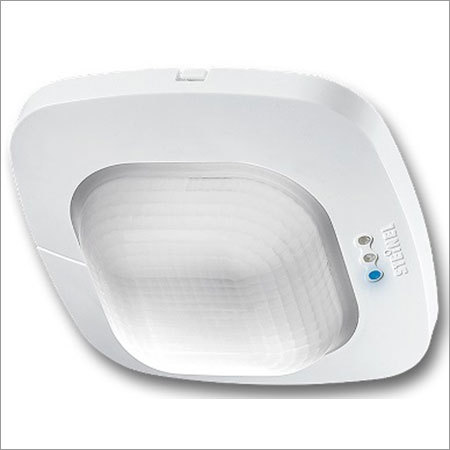

Our sound knowledge and industry experience has enabled us to become the most successful supplier of excellent quality Occupancy Sensor. Offered sensor is a lighting control device and turns the lights on or off automatically using infrared, ultrasonic or microwave technology. This sensor is skillfully designed and manufactured by our trusted vendors using quality tested components in compliance with the advanced technology. Resistant to UV or IR radiation, the provided Occupancy Sensor can be availed from us in different specifications at reasonable rates.
Pammvi Exports Private Limited are the suppliers and distributors for the Steinel Manufactured German Quality Occupancy Sensor used for energy saving and lighting control in offices, conference rooms, laboratories and areas where there is minimal movement of the occupant.
An Occupancy Sensor turns the light "ON" / "OFF" automatically after a preselected time delay in addition to the light level control setting. The integrated photocell monitors the ambient natural Lux levels before turning on the connected loads automatically. This level can be selected manually or automatically recorded through the teach in option.
IR Quattro high definition (HD) has an infrared presence controller which is equipped with 4 digital pyro-sensors having 4800 switching zones for superior and accurate human detection.
Further, very small movement can also be detected such as 8 x 8 m radial detection, 20 x 20 m tangential observation and 8 x 8 m presence identification. Furthermore, rectangular-zone identification and infinitely scaling gives accurate precision.
These sensors can be adjusted according to the requirements and can be controlled by remote also.
IQ mode self regulates brightness, stay "ON" time when room is used and has memory to store lighting scenarios.
Furthermore, DIP switches have semi mode, automatic control mode and to control the lighting "ON" & "OFF" mode is also given.
Moreover, identification zone can be increased by connecting master and slave detectors.
Presence controllers such as DIM, PRO COM1 and COM2 can also be used to increase the identification zone.
|Technical Specifications Occupancy Sensor
|European Article Number (EAN)
||13 detection levels
4800 switching zones
|Dimensions(h x w x d)
||120 x 120 x 70 mm
||User-friendly setting capability
||Teach-in (with optional remote control RC3)
||Passive infrared (PIR)
||10 - 1000 lux, /daylight
||Basic light level
||0 sec. -30 min., 10 %
|Recommended installation height
||IP rating with AP Box (surface-mounting box)
|Square presence detection zone
||8 x 8 m max. (64mÃÂ²)
|Square tangential detection zone
||20 x 20 m max. (400mÃÂ²)
|Square radial detection zone
||8 x 8 m max. (64mÃÂ²)
|Reach mechanically adjustable
