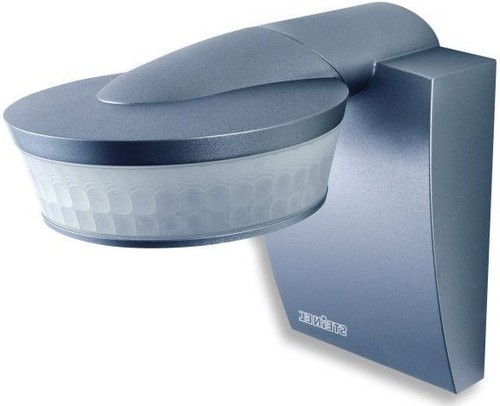

Outdoor PIR Motion Sensor

Outdoor PIR Motion Sensor
Outdoor PIR Motion Sensor
Product Code : 1000 VA
Brand Name : Steinel
Product Description

Outdoor PIR Motion Sensor

Pammvi is a leading dealer, agent, supplier and wholesaler for German made Steinel Passive Infrared Outdoor PIR Motion Sensor to our Indian Customers in the Railways, Airports, Large Commercial Establishments and Airports to name a few. Motion Detection by its implication detects large human movements where the pyro detector receives heat signatures from moving human beings at distances exceeding 20 meters. The Detection Lens is designed to trigger downstream electronic activity after detecting the complete thermal profile of a human being

The Sens IQ Outdoor PIR Motion Sensor has 4 ultra sensitive pyro detectors all of which can be individually adjusted mechanically to suit actual site conditions. These pyro sensors have 6 long distance detection levels, 5 detection levels for the sneak by guard and 1,360 switching zones all within a radius of  300°.

This is not called the King of Motion Sensors without reason. It has won many accolades for its innovative dual mount design wherein it can be mounted on a wall and a suspended ceiling. Amongst many achievements this Outdoor PIR Motion Sensor has won  the coveted IF-Design Award and nominated for the German Design Award.

The main objective of every Motion Sensor is to turn lights on and off automatically after the preselected time delay of 5 seconds - 15 minutes has elapsed thereby saving energy. Furthermore, its unique daylight harnessing feature where a preselected lux threshold can be programmed to ensure that the Motion Sensor triggers the lighting loads only if this threshold of 2-2000 lux is breached. It has a vacancy sensor setting where the connected loads can be actuated with a push button wired into the Motion Sensor. This helps in reducing the number of sensors for an application. It has other optional accoutrements like a soft start module for LEDs, a wireless module for daisy chaining multiple Sensor devices into a neighbourhood and a floating output for integrating the Motion sensor into a master control system.

Technical specifications Outdoor PIR Motion Sensor SensIQ Black
European Article Number (EAN)4007841600518
TypeMotion detector
Dimensions(h x w x d)144 x 113 x 172 mm
Voltage220 - 240 V / 50 Hz (2.5 mm² max.)
Sensor typePassive infrared
Applicationindoors and outdoors
InstallationWall
Ceiling
Corner
Recommended installation height2.00-2.50 m
max. output (resistive load, incandescent lamp)2500 W
max. output (uncorrected, inductive, cos   = 0.5, e.g. fluorescent lamps)1000 VA
max. output (series-corrected)1800 W
max. output (parallel corrected, with C 45.6 µF)500 W
max. output (electronic ballasts, capacitive, e.g. low-energy lamps)8 ea. max.,µF
Detection angle300° with 180° angle of aperture
Capability of masking out individual segmentsYes
Sneak-by guard/coverage directly below the sensorYes
ReachAdjustable in 3 directions by control dial, (2 -20 m max., tangentially, temperature-stabilised)
Sensor system4 sensors, 6 levels for long-distance detection and 5 for sneak-by guard, 1360 switching zones
Response brightness2-2000 lx
Time setting5 sec.- 15 min., pulse mode (approx. 2 sec.)
Manual overrideselectable, 4h
IP ratingIP54
Protection classII
Temperature range-20-+50 °C
VersionBlack
