Passive Infrared Wall Switches

Passive Infrared Wall Switches
Passive Infrared Wall Switches
Product Code : PIR Wall Switch
Product Description

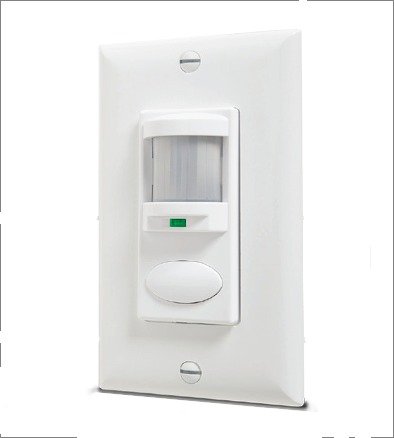

PIR Wall Switch

Pammvi is a reputed dealer, agent, solution provider, supplier and wholesaler for the USA Manufactured PIR Wall Switch to our professional Customers in India. This Passive Infrared (PIR) sensor Wall Switch is ideal for private offices, copy rooms, closets, or any small enclosed space without obstructions.

It can be fitted into any standard switch box reducing the installation time substantially without compromising on the efficacy of human detection due to its digitised PIR Sensing module.  A user programmable time delay ensures that once the room is vacated the sensor will time out and turn off the lights. Additionally, the WSX sensor has several On Modes and Switch Modes that can be programmed using the front push-button.

This PIR Wall Switch has a patent-pending wiring method that enables them to function either with or without a neutral connection. They come pre-configured for wiring without a neutral; however, if connection to neutral is required by code, contractors can convert the unit in seconds.

Salient Features

  • 100% Digital PIR Detection, Excellent RF Immunity
  • Small Motion Detection up to 20 ft
  • Self-Grounding Mounting Strap
  • Green LED Indicator
  • Self-Contained Relay - No Power Pack needed
  • Ultra Low Current Leakage (<0.5 mA) when Connected via Ground
  • Fully meets NEC 2011 Section 404.2C Neutral Requirements
  • No Current Leakage to Ground when Connected via Neutral
  • Interchangeable Hot & Load Wires
  • Impossible to Wire Backwards
  • No Minimum Load Requirements
  • Compatible w/ Electronic & Magnetic Ballasts, CFLs, LEDs, & Incandescents
  • Push-Button Programmable w/o Removing the Switch Plate
  • Photocell standard (disabled by default)
  • Lamp Maximizer Minimum On Time (disabled by default)
  • Adjustable Time Delay
  • Non-Volatile Settings Memory
  • Includes Matching Wall Plate
  • Physical Specs
    • Weight: 5.00oz
    • Size: 2.74" H x 1.68" W x 1.63" D (6.96 cm x 4.27 cm x 4.14 cm); not including ground strap
    • Mounting: Single Gang Switch Box
    • Mounting Height: 30-48 in (76.2 to 121.9 cm)
    • Color: White, Ivory, Gray, Light Almond, and Black
    • ROHS Compliant
    • Silicone Free
  • Electrical Specs
    • Load Rating (1 Phase Only): 800 W  120 VAC, 1200 W  277 VAC, 1500 W  347 VAC
    • Motor Load: 1/4 HP
    • Minimum Load: None
    • Frequency: 50/60 Hz (Timers are 1.2 times for 50 Hz)
  • Environmental Specs
    • Relative Humidity: 20 to 90% non-condensing
    • Operating Temp: 14º to 85º F (-10° to 29°C)
  • Other
    • UL and CUL Listed
    • California Title 24 Compliant
    • 5 Year Warranty
    • Assembled in the USA
