PIR Motion Sensor Light

PIR Motion Sensor Light
PIR Motion Sensor Light
Product Code : 60 Watts
Brand Name : Steinel
Product Description

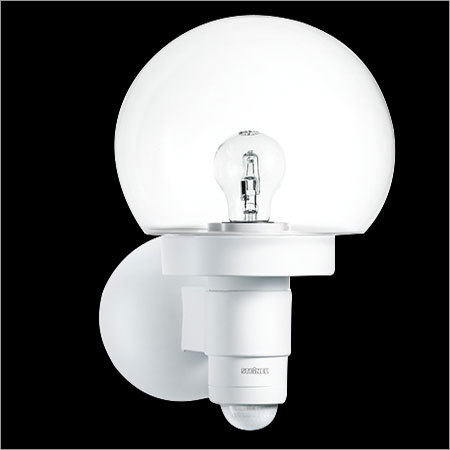

PIR Motion Sensor Light

Pammvi offers to its Indian Customers a German Quality outdoor PIR Motion Sensor Light manufactured by Steinel in its European Factories. It operates on the principle of Passive Infrared Detection due to the presence of Pyro Sensors housed strategically within the sensing module behind a multi segmented lens at the bottom of this Outdoor Light Fixture.

The Steinel Sensor-switched outdoor PIR Motion Sensor light L 115 S is ideal for building fronts and building entrances. The PIR Motion Sensor has a  240° angle of coverage and a reach up to 12 m with a selectable time and twilight threshold, basic light-level function. What this function achieves is daylight harvesting for the end user. The activation of the lighting is based on the ambient daylight levels detected by the photocell.

Watt-o-matic provides the capability of adjusting basic brightness from 0 % to 50 % – when movement is detected, the light switches from the basic brightness to full power

Technical specifications of the Outdoor PIR Motion Sensor Light  L 115 S White
European Article Number (EAN)4007841657413
Dimensions(h x w x d)330 x 215 x 257 mm
Voltage230-240 V/50 Hz
Sensor typePassive infrared
Output60 W max. / E 27
Detection angle240° with 120° angle of aperture
Capability of masking out individual segmentsYes
Reach12 m max.
Response brightness2-2000 lx
Time setting5 sec. - 15 min.
Basic light level0 % - 50 %
IP ratingIP44
Protection classII
MaterialUV-resistant plastic
With lampNo
Suitable for incandescent lamps, low-energy lamps and LEDsYes
