Presence Detector

Presence Detector
Presence Detector
Product Code : Quattro SLIM
Brand Name : Steinel
Product Description

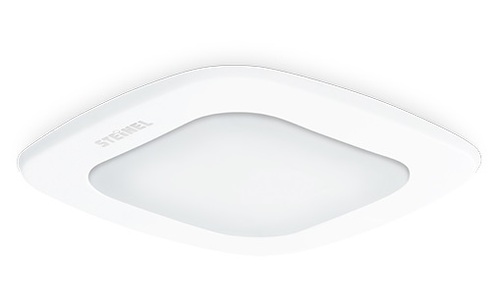

Presence Detector

Pammvi is a leading dealer, agent, supplier and wholesaler for German Quality Steinel Manufactured Presence Detector to our large format customers in India. Architects particularly prefer its "4 mm" thick small and slim form factor as they are discreet and virtually inconspicuous in appearance blending well with the interior design.

This  Presence detector Control PRO IR Quattro SLIM is a unique Presence Detector as it is available with the DALI and KNX versions as well making it extremely versatile for lighting control solutions. It is always used indoors and is the perfect solution  for small offices, store, service and utility rooms, washrooms and WCs to mention a few.

The Presence Detector turns the light on/off automatically after a preselected time delay and ambient daylight level monitoring by its photodiode controller all of which are housed within a unique Retina lens which has a 360°coverage angle over an area of 16m². There is an optional isolated second channel output for controlling heating, ventilation, VAV units and air-conditioning in relation to human presence and ambient Lux levels. An optional Hand Held IR Remote Control is available.



Technical Specifications Presence Detector
European Article Number (EAN)4007841593414
TypePresence detector
Dimensions(h x w x d)77 x 77 x 60 mm
Dimensions (H x W x D), load module61.3 x 126.5 x 42.5 mm
Voltage120 - 240 V, 50/60 Hz
Inrush current800 A max. / 200
Electronic ballast30 x (1 x 18 W), 25 x (2 x 18 W)
25 x (1 x 36 W), 15 x (2 x 36 W)
20 x (1 x 58 W), 10 x (2 x 58 W)
Sensor typePassive infrared
Applicationinside buildings
InstallationCeiling
Recommended installation height2.5-4 m
max. output (resistive load, incandescent lamp)2000 W max. for 230 V
1000 W max. for 120 V W
max. output (uncorrected, inductive, cos φ = 0.5, e.g. fluorescent lamps)1000 W max. for 230 V
500 W max. for 120 V W
Can be connected in parallelYes
Square presence detection zone4 x 4 m max. (16m²)
Square tangential detection zone4 x 4 m max. (16m²)
Square radial detection zone4 x 4 m max. (16m²)
Sensor systemPIR with retina lens and hexagonal Fresnel structure
Parallel-connected configurationsMaster/master
Master/slave
User-friendly setting capabilityTeach-in (with optional remote control RC8)
Light-level setting10 -1000 lux, ?/daylight
IP ratingIP20
Protection classII
Temperature range0-+40 °C
IQ modeYes
HousingUV-resistant, paintable
ModelCOM1
