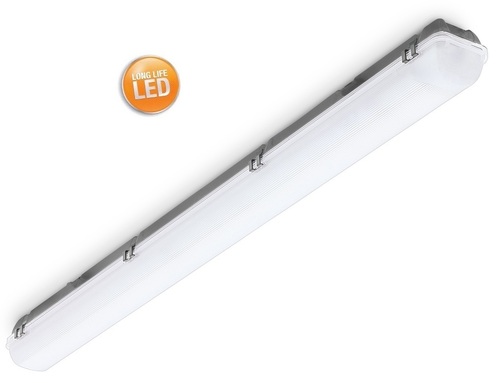

Sensor LED Tube Light

Sensor LED Tube Light
Sensor LED Tube Light
Product Code : 40 W LED Tube Light
Brand Name : Steinel
Product Description

Sensor LED Tube Light

Pammvi is Mumbai based specialist lighting and energy saving solutions provider, a leading dealer, agent, supplier and wholesaler for German made Steinel Sensor LED Tube Light to our large clients

With an IP 66 rating this LED Linear Luminaire pretty much endures the harshest operating conditions and can be conveniently used in corridors, thoroughfares, aisle ways, passages, multi storey car parks, washrooms and store rooms to name just a few. Its moisture proofed construction with a durable long lasting LED Module virtually ensures its longevity and performance.

STEINEL LED Lighting System

Efficient, long-lasting and trendsetting. More quality of life, more safety and security and more energy saved with intelligent sensor and LED technology from STEINEL. This German made Steinel Sensor LED Tube Light turns on and off automatically upon the High Frequency Motion Sensor detecting human presence in its range of detection.

Technical Parameters

As this genre of Motion Sensing Technology can detect movement beyond glass, wood etc it is imperative that the High Microwave Motion Sensor has an adjustable range setting (2 to 8 meters) for precise detection of the human movement. It has an adjustable twilight threshold setting for daylight harnessing. The Light Dependent Resistor incorporated in the Sensor LED Tube Light detects the optimal natural daylight and decides to turn on or off the light fixture based on the limit set. An off time delay timer can be set to suit the end users site requirements.

The STEINEL RS PRO 5800 LED provides dynamic lighting in spaces exposed to moisture. This means: benefiting from the integrated swarm function, the LED light automatically "moves" to wherever it's needed. The Steinel RS PRO 5800 LED has a 40-watt STEINEL LED lighting system that generates 4600 lm of light with a life expectancy of 30 years

Steinel has provided for a basic convenience light level function where the basic illumination is always available to an occupant and after the Motion Sensor detects genuine human movement, it ignites the complete LED Light Fixture.  All basic settings can be made with an optional Infrared remote control. Optional DALI interconnection capability.

The Remote Group Setting function (group parameterisation) ensures that the settings made on just one luminaire are relayed to all the other lights.

Technical Specifications Sensor LED Tube Light
European Article Number (EAN)4007841007652
Dimensions(h x w x d)105 x 1278 x 105 mm
Voltage220 - 240 V, 50/ 60 Hz
Sensor typeHigh Frequency
Transmitter powerapprox. 1 mW
HF-system5.8 GHz (responds to the tiniest movement regardless of temperature)
Output40 W LED
Brightness4600 lm
Efficiency115 lm/W
Light colour4000
LED life expectancy50000 h
Detection angle360°
Detectionalso through glass, wood and stud walls
Reach2 - 8 m dia. max.
Max. area covered50 sq.m
Response brightness2-2000 lux
Time setting5 sec. - 15 min.
Group parameterisationby Remote Group Setting function (RGS)
Swarm intelligenceYes
Basic light levela) all night
b) 10 min. after expiry of the set time
c) 30 min. after expiry of the set time
Basic light level10 % - 50 %
Manual overrideselectable, 4h
Soft light startYes
IP ratingIP66
Protection classII
Impact-resistanceIK08
Temperature range-20-+30
VersionSensor
MaterialImpact-resistant plastic, IK 08
AccessoriesRC10 remote control (optional)
Special featuresIntegrated DALI interconnection
LampLED system
With lampYes
