Waterproof LED Flood Lights

Waterproof LED Flood Lights
Waterproof LED Flood Lights
Product Code : 330 LEDs; 18 W
Brand Name : Steinel
Product Description

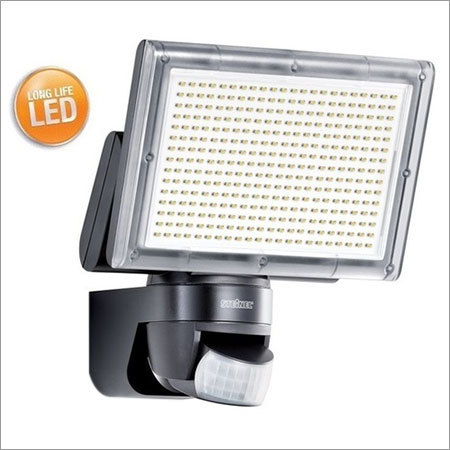

Waterproof LED Flood Lights

Pammvi is a renowned wholesaler, importer, distributor, trader and supplier of high quality Waterproof LED Flood Lights manufactured in Germany by Steinel.  This Sensor-switched LED floodlight XLed Home 3 is ideally suited for outdoor applications in driveways, courtyards, gardens and porches

The Very Responsive PIR Motion Sensor Turns the Lights ON / OFF  automatically on detecting human movement within the detection range. With a 330 LEDs generating 18W of illumination equivalent to about a 300W Halogen Light, it helps conserve energy for the end user.The PIR Sensor itself has a  140° angle of coverage with a reach of 14 m apart from a time delay (8 seconds - 35 minutes) and ambient light level setting (2-2000 Lux) for harnessing daylight.

The Active Thermo Control intelligent LED Management system ensures a long life for the LED Performance without compromising on the colour rendering.  It comes in 3 colours Black, White and Silver.

Many times, the retail end user installs this Waterproof LED Flood Light on a external wall face and interfaces it to the input of a CCTV camera which allows the light to get activated when human presence is detected by the motion sensor.

The Waterproof LED Flood Lights can be bypassed for a period of 4 hours where the motion detector will get de-activated. This feature is particularly useful when there is a party and guests traffic is high. The motion sensor de-activated therefore does not allow the guests to get surprised every time

Steinel offers a 3 year functional warranty on all its products and solutions.

Technical specifications Waterproof LED Flood Lights X LED home 3 Black
European Article Number (EAN)4007841582111
Dimensions(h x w x d)234 x 206 x 180 mm
Voltage230-240 V/50 Hz
Sensor typePassive infrared
Output330 LEDs; 18 W
max. output (resistive load, incandescent lamp)800 W
max. output (uncorrected, inductive, cos φ = 0.5, e.g. fluorescent lamps)400 W
max. output (electronic ballasts, capacitive, e.g. low-energy lamps)max. of 4 each, ? 88 µF
Brightness1426 lm
Efficiency79.2 lm/W
Light colourCC001123
Colour renderingCC001113
LED life expectancyCC001115 h
Floodlight positioning range180° horizontally, 120° vertically
Detection angle140° with sneak-by protection
Sensor swivelling range180 °
Sensor tilting range90 °
Reach14 m max. (temperature-stabilised)
Response brightness2-2000 lx
Time setting8 sec. - 35 min.
IP ratingIP44
Protection class
MaterialUV-resistant plastic with aluminium heat sink
Temperature range-20 - +40 °C
With lampSTEINEL LED system
Lamp replaceableNo
