Wireless Motion Sensor

Wireless Motion Sensor
Wireless Motion Sensor
Product Code : Wall & Corner Mount
Brand Name : Steinel
Product Description

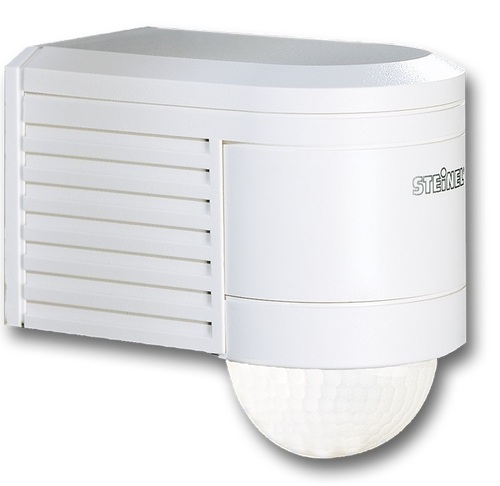

Wireless Motion Sensor

Pammvi is a leading dealer, agent, supplier and wholesaler for the Wireless Motion Sensor manufactured by Steinel - Germany to our clients in India. These are ideally suited for both indoor and outdoor applications and are Wall Mounted.

Automatically Turn Lights "ON / "OFF" in response to human movements and ambient light levels.

The Passive Infrared Sensor detects movement at a distance of 12 meters and has a 300° angle of coverage with a 180° angle of aperture. The sensor head can be turned through 80° for precise positioning. The Angle of Coverage can be reduced by fitting shrouds so that unsolicited movements are obviated. This Wall Mount Battery Operated Wireless Motion Sensor has a switching capacity of 1000Va and can be used for automating large lighting systems

Steinel offers a 3 year functional warranty on all its products and solutions.

Technical specifications IMPULSER Transmitter IS-FS 300 wireless sensor technology Black
European Article Number (EAN)4007841704711
TypeMotion detector
Dimensions(h x w x d)85 x 60 x 95 mm
Operating voltage9-V block battery (alkaline), life expectancy at least 12 months
InstallationWall
Corner
Recommended installation height2.00 m
Detection angle300° horizontally, 180° vertically
Capability of masking out individual segmentsYes
Sneak-by guard/coverage directly below the sensorYes
Adjustment range± 80°
Reach12 m max., electrically stabilised
Sensor system10 detection levels
720 switching zones
Operating frequency868.3 MHz (ISM band)
Transmitter rangeup to 100 m in the open, 30 m all round indoors
Transmitter powerless than 1000 W
Programmingat 5-way DIP switch, 32 possible addresses per channel
Number of receiversany
Response brightness2-2000 lx
Time setting1 min. – 15 min.
IP ratingIP54
Protection classII
Temperature range-20-+50 °C
VersionBlack
